ER16 Spring Collet CNC Lathe hown - store

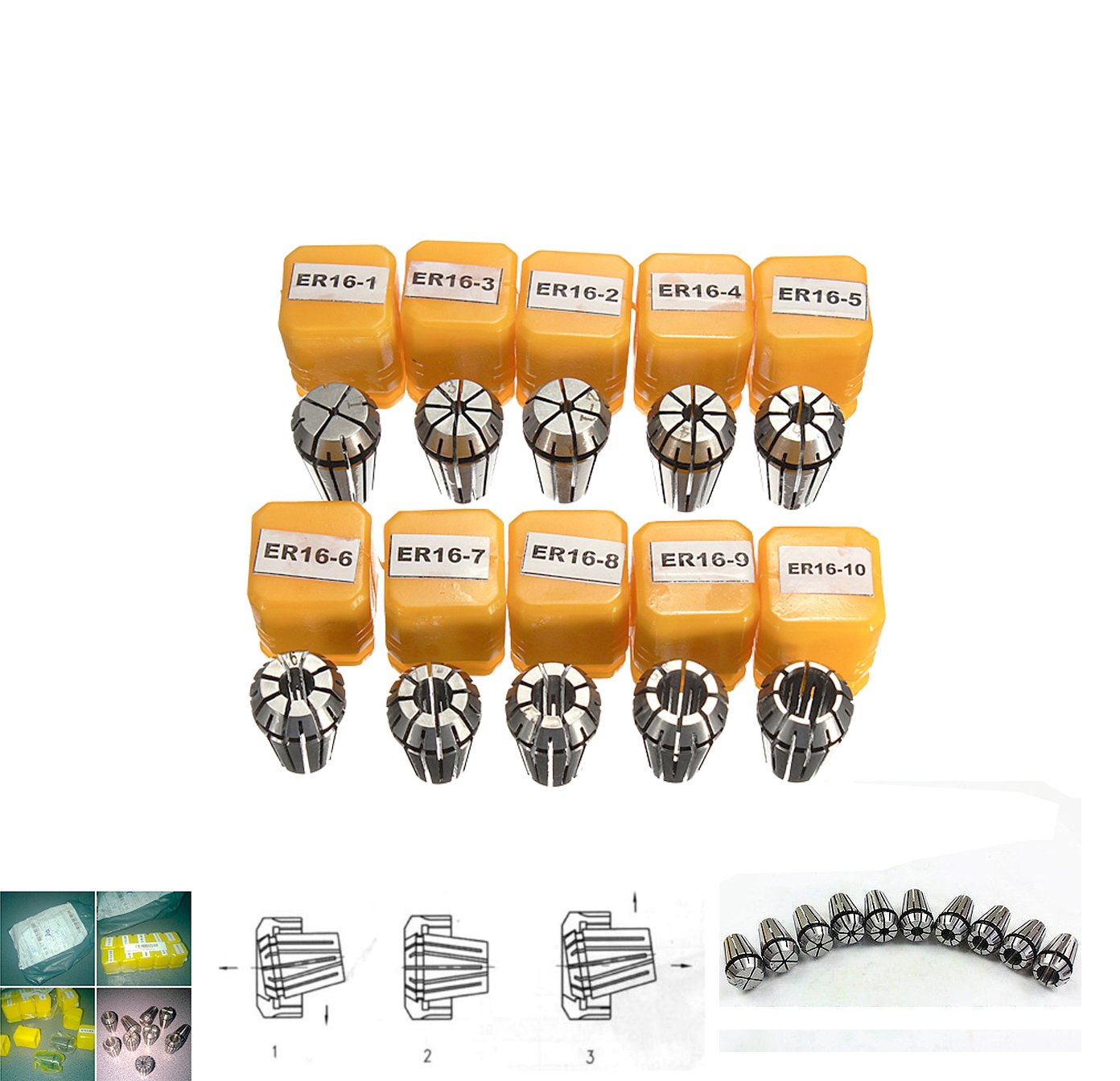

Tool Set 10pcsER16 Spring Collet Set for CNC milling Lathe Tool & Workholding Engraving machine
Made of high-grade spring Carbon Steel.Hardened & precision ground.

Specification:
Item: Spring Collet
Model : ER16Color: Metallic Silver
Material: High Grade 1065 Carbon Steel 20Mn.
Run-Out Tolerance : 0.015mm (0.0006")
Hardness: HRC 56~60
Total height: 27.5mm / 1-5/64 inch.
Outer diameter(Max): 16mm / 5/8 inch.
Gripping Range :
1mm to 10mm / 3/64" - 25/64"
1mm / 3/64 inch
2mm / 5/64 inch
3mm / 1/8 inch
4mm / 5/32 inch
5mm / 13/64 inch
6mm / 15/64 inch
7mm / 9/32 inch
8mm / 5/16 inch
9mm / 23/64 inch
10mm / 25/64 inch

Features:
ER16 precision spring collet, ground roughness is Ra0.4 Microns, plus overall fine polish.
Used in boring, milling, drilling, tapping, CNC, sculpture and other processing operations.
Also can be supported used with the holder of CNC tool.
Big clamping force, wide clamping range, high accuracy.

Package included :
10pcs x ER16 Spring Collet CNC Milling Lathe Engraving Machine.
